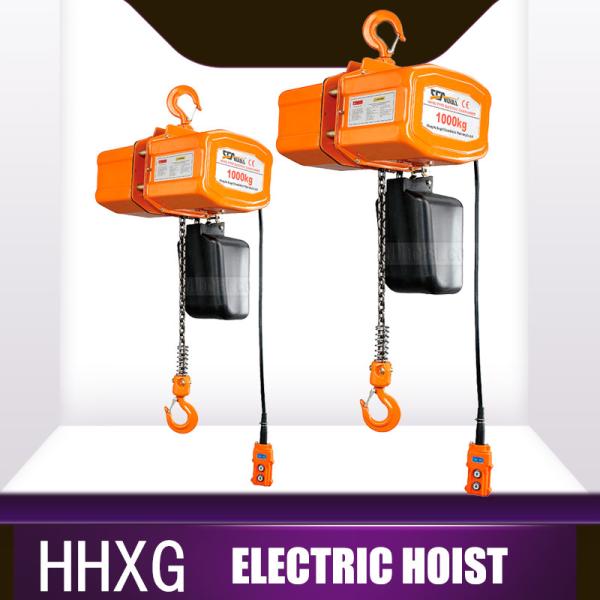

3 Ton Electric Chain Hoist Mni Crane 220V 1m/Min Lifting

Product Categories

Changshu Seagull Crane&Hoist Machinery Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 3 Ton Electric Chain Hoist Mni Crane 220V 1mMin Lifting
Brand: SEAGULL
Price: 1 USD

Add to Cart

3ton / 3 Tonne / 3t Electric Chain Hoist , Electric Mni Crane 220 V

HHXG2 SUSPENDED TYPE SINGLE PHASE ELECTRIC CHAIN HOIST
Model		HHXG205	HHXG210	HHXG220	HHXG230	HHXG250
Rated Load(Ton)		0.5	1	2	3	5
Lift(m)		3	3	3	3	3
Lifting Speed(m/min)		5.2	5.2	2.6	1.7	1
Hoist Motor	Output(kw)	0.8	1.2	1.2	1.2	1.2
1-phase	Ins Class	F	F	F	F	F
	%ED	40	40	40	40	40
Load	Dia(mm)	7.1	7.1	7.1	7.1	7.1
Chain	Number of falls	1	1	2	3	5
Dynamical Test(KN)		5.5	11	22	33	55
Min. Headroom		545	580	740	790	950
MaxG(mm)
Net Weight		64	65	72	80	135
(kg)

HHXG3 SUSPENDED TYPE THREE PHASE ELECTRIC CHAIN HOIST
Model		HHXG305	HHXG310	HHXG320	HHXG330	HHXG350
Rated Load(Ton)		0.5	1	2	3	5
Lift(m)		3	3	3	3	3
Lifting Speed(m/min)		6.3	6.3	3.2	2.1	1.3
Hoist Motor	Output(kw)	0.8	1.6	1.6	1.6	1.6
3-phase	Ins Class	F	F	F	F	F
	%ED	40	40	40	40	40
Load	Dia(mm)	7.1	7.1	7.1	7.1	7.1
Chain	Number of falls	1	1	2	3	5
Dynamical Test(KN)		5.5	11	22	33	55
Min. Headroom		545	580	740	790	950
MaxG(mm)
Net Weight		64	65	72	80	135
(kg)

HHXG3 DOUBLE SPEED SUSPENDED TYPE THREE PHASE ELECTRIC CHAIN HOIST
Model		HHXG305B	HHXG310B	HHXG320B	HHXG330B	HHXG350B
Rated Load(Ton)		0.5	1	2	3	5
Lift(m)		3	3	3	3	3
Lifting Speed(m/min)		5.2/1.7	5.2/1.7	2.6/0.85	1.7/0.58	1.0/0.35
Hoist Motor	Output(kw)	0.8/0.25	1.2/0.4	1.2/0.4	1.2/0.4	1.2/0.4
1-phase	Ins Class	F	F	F	F	F
	%ED	40	40	40	40	40
Load	Dia(mm)	7.1	7.1	7.1	7.1	7.1
Chain	Number of falls	1	1	2	3	5
Dynamical Test(KN)		5.5	11	22	33	55
Min. Headroom		545	580	740	790	950
MaxG(mm)
Net Weight		64	65	72	80	135
(kg)
