Hand Chain Block G80 Oil Black , 18m Chain Pulley Block 30 Ton

Product Categories

Changshu Seagull Crane&Hoist Machinery Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	SEAGULL or OEM pointed brand
Model Number :	HSZ-E
Certification :	CE/ES
Price :	negotiable
Payment Terms :	L/C, T/T
Supply Ability :	100 pieces per year
Delivery Time :	30-45 days after receive the sales contract for 1.5t chain pulle

Add to Cart

*Capacity from 0.5T to 30T.

*gear assembly to be efficient for operation.

*light-weight steel body with durable powder coat.

*Drop forged hooks and hook holders to ensure superior quality and safety.

*Asbests-free brake discs.

*Bearing mechanism to increase mechanical efficiency.

*G-80 load chain for sprocket made of alloy steel with precision machining has been got well heat-treatment.

*More thickness of sheet cover,gear cover and side plates for good quality.

*The static test is 4times of capacity, and running test is 1.5times of capacity one by one.

*CE AND GS CERTIFIED.

*One year guarantee.

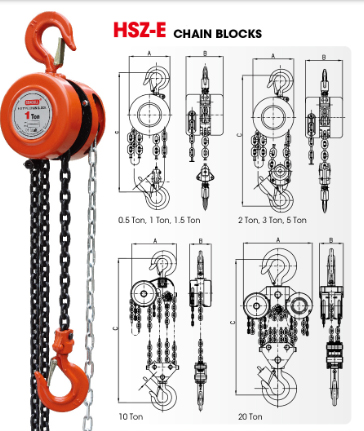

HSZ-E CHAIN BLOCKS 0.5Ton-30Ton
Model	HAS-0.5E	HSZ-1E	HSZ-1.5E	HSZ-2E	HSZ-3E	HSZ-5E	HSZ-10E	HSZ-20E	HSZ-30E
Rated load(T)	0.5	1	1.5	2	3	5	10	20	30
Standard lift(m)	2.5	2.5	2.5	2.5	3	3	3	3	3
Test load(T)	0.75	1.5	2.25	3	4.5	7.5	12.5	25	37.5
Efforts required at capacity(N)	262	314	343	318	347	382	390	390	394
Diameter of load chain(mm)	6	6	8	6	8	10	10	10	10
No. of load chains	1	1	1	2	2	2	4	8	10
Dimensions (mm) A B C D	142 126 280 28	142 126 300 32	178 142 360 38	142 126 380 40	178 142 470 44	210 165 600 50	358 165 730 64	580 195 1000 82	688 394 1050 82
Net weight (kg)	9.5	10.5	17.5	14.5	23	35	68	155	233
Extra weight per meter of extra lift(kg)	1.7	1.7	2.4	2.5	3.7	5.3	9.7	19.4	23.9
