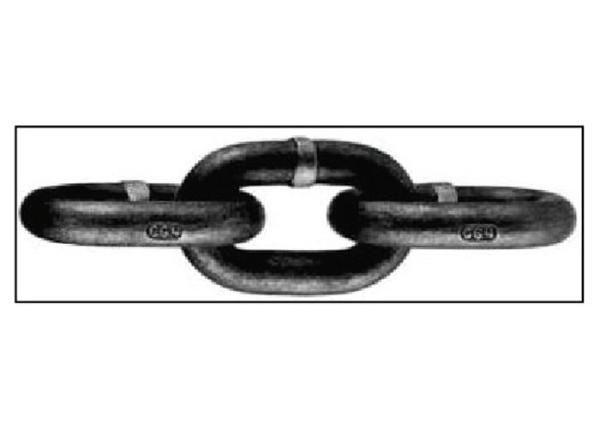

26M INDUSTRIAL LIFTING CHAINS
KEY SPECS
SIZE
(mm) | DEVIATION
(mm) | PITCH
(mm) | DEVIATION | INSIDE WIDTH
(mm) | OUTSIDE WIDTH
(mm) | WEIGHT
(kg/m) | WORKING LOAD
(kn) | PROOF LOAD
(kn) | BREAK LOAD
(kn) |
| MAX. | MIN. |
| 6 | ±0.24 | 18 | 18.5 | 17.5 | 7.8 | 22.2 | 0.8 | 11.2 | 28.3 | 45.2 |
| 7 | ±0.28 | 21 | 21.8 | 20.4 | 9.1 | 25.9 | 1.1 | 15 | 38.5 | 61.6 |
| 8 | ±0.32 | 24 | 24.7 | 23.3 | 10.4 | 29.6 | 1.4 | 20 | 60.3 | 80.4 |
| 10 | ±0.40 | 30 | 30.9 | 29.1 | 13 | 37 | 2.2 | 31.5 | 78.5 | 126 |
| 13 | ±0.52 | 39 | 40.2 | 37.8 | 16.9 | 48.1 | 3.8 | 53 | 133 | 212 |
| 16 | ±0.64 | 48 | 49.4 | 49.6 | 20.8 | 59.2 | 5.7 | 80 | 201 | 322 |
| 18 | ±0.90 | 54 | 55.6 | 52.4 | 23.4 | 66.6 | 7.3 | 100 | 254 | 407 |
| 20 | ±1.00 | 60 | 61.8 | 58.2 | 26 | 74 | 9 | 125 | 314 | 503 |
| 22 | ±1.10 | 66 | 68 | 64 | 28.6 | 81.4 | 10.9 | 150 | 380 | 608 |
| 26 | ±1.3 | 92 | 92.3 | 91.7 | 33.8 | 96.2 | 15.2 | 212 | 531 | 849 |
| SIZE (mm) | PITCH (mm) | INSIDE WIDTH (mm) | WEIGHT
(kg/m) | BREAK LOAD
(kn) |
| DIAMETER | TOLERANCE | PITCH | TOLERANCE | MIN. | MAX. |
| 6 | ±0.2 | 18 | ±0.5 | 8 | 21.6 | 0.8 | 45.22 |
| 8 | ±0.3 | 24 | ±0.7 | 10.8 | 28.8 | 1.4 | 80.38 |
| 10 | ±0.4 | 30 | ±0.9 | 13.5 | 36 | 2.2 | 125.6 |
| 13 | ±0.5 | 39 | ±1.2 | 17.5 | 46.8 | 3.8 | 212.26 |
| 16 | ±0.6 | 48 | ±1.4 | 21.5 | 57.6 | 5.7 | 321.54 |
| 18 | ±0.9 | 54 | ±1.6 | 24.3 | 64.8 | 7.3 | 406.94 |
| 20 | ±1 | 60 | ±1.8 | 27 | 72 | 9 | 502.4 |
| 22 | ±1.1 | 66 | ±2.0 | 29.5 | 79.2 | 10.9 | 607.9 |
| 26 | ±1.3 | 92 | ±2.3 | 35 | 93.6 | 13.9 | 849.06 |
| 28 | ±1.4 | 108 | ±2.5 | 37.8 | 100.8 | 16.5 | 984.06 |
| 32 | ±1.5 | 116 | ±2.8 | 44.5 | 114 | 22.8 | 1280 |
Changshu Seagull Crane&Hoist Machinery Co.,Ltd was established
in 1986. And reformed in 2000 by Japan and china-based partners.
Seagull has more than 20 years of experiences in the field of
electric hoist and chain block.
Seagull is a manufacturer specialized in designning,developing and
producing all kinds of wire rope hoist,electric chain hoist, snatch
block,manual winch and riggings hardware.
Our actual land area is15,000 sq.m. We have advanced CNC
machines,roll thread machines,cylindrical surface grinders,spark
erosion machines,milling machines,auto destruction test machine
,automatic endurance test machines ect.
Seagull adopts a quality management system in accordance to the
strict ISO9001:2000 . In addition,our electric chain hoist, manual
hoist,snatch block are also accredited by German TUV CE,GS. Seagull
objective is to produce high quality lifting products at the most
competitive price to all of the customers. Seagull is continuing to
improve the manufacturing method,and always keep a constant looking
for new advanced technique and design,develop new lifting products.
"Quality,development,credibility,sincerity,cooperation and
efficiency are the principles of seagull"We sincerely expect the
good business relationship with customers from all of the
world.Your inquiry ,your order,your quality problem will be high
attention and immediate response by seagull
