Product Description

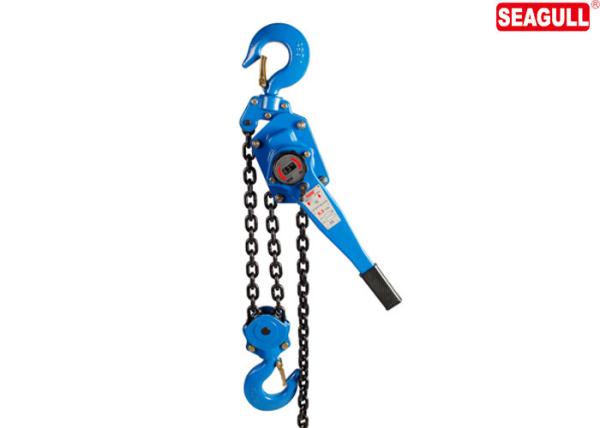

Safety 6 Ton Steel Chain Lever Hoist Hand Lifting Tools For
Building- CE/GS certified
The SEAGULL manual lever chain hoist features a rugged steel frame,
load chain hardened for strength and durability and compact design
that's perfect for tight spaces. Enclosed gear housing provides
protection that makes it suitable for outdoor use. Guide slots
guard against jamming and slipping.
Advantages
* Capacity from 0.75T to 6T.
* Bearings inside load chain sprocket increase mechanical
efficiency.
* Chain guides provide smooth chain operation .
* Gear assembly provide smooth operation by little hand efforts.
* Drop forged hooks and hook holders, heat treated to ensure the
safety and durability.
* lightweight steel construction with durable powder coat finish.
* T80 grade high tensile lifting chain make more effective.
* CE CERTIFIED.
* One year guarantee.
Technical Parameters
| Model | HSH-7.5CB | HSH-15CB | HSH-30CB | HSH-60CB |
| Rated load (T) | 0.75 | 1.5 | 3 | 6 |
| Test load (T) | 0.95 | 1.875 | 3.75 | 7.5 |
| Standard lift (m) | 1.5 | 1.5 | 1.5 | 1.5 |
| Min. distance between two hooks(mm) | 290 | 385 | 477 | 550 |
| Efforts required at capacity (N) | 196 | 220 | 325 | 343 |
| No. of load chains | 1 | 1 | 1 | 2 |
| Diameter of load chain (mm) | 6x18 | 8x24 | 10x30 | 10x30 |
| Dimensions (mm) | A | 148 | 174 | 193 | 193 |
| B | 135 | 160 | 209 | 263 |
| C | 295 | 423 | 423 | 423 |
| H | 290 | 385 | 477 | 550 |
| Extra weight per meter of extra lift(kg) | 0.82 | 1.43 | 2.21 | 4.42 |
| Net weight (kg) | 7 | 11 | 20 | 30 |
Product instructions
1. After the use of gourd should be cleaned up, and coated with
anti-rust grease, stored in a dry place.
2. Maintenance and maintenance should be familiar with the gourd
institutions, to prevent the principle of the machine does not
understand the random disassembly.
3. Gear installation according to the drawings.
4. When the groove nut is installed, turn the handwheel clockwise
to make the ratchet wheel and the friction plate pressed on the
brake air seat.
5. Gourd after cleaning inspection and maintenance, should be
carried no load and heavy load test, to confirm the work is normal,
automatic and reliable to use. The friction surface of the brake
must be kept clean and sludge contamination is strictly prohibited.
Product Line
Test
Packing
Certificate
