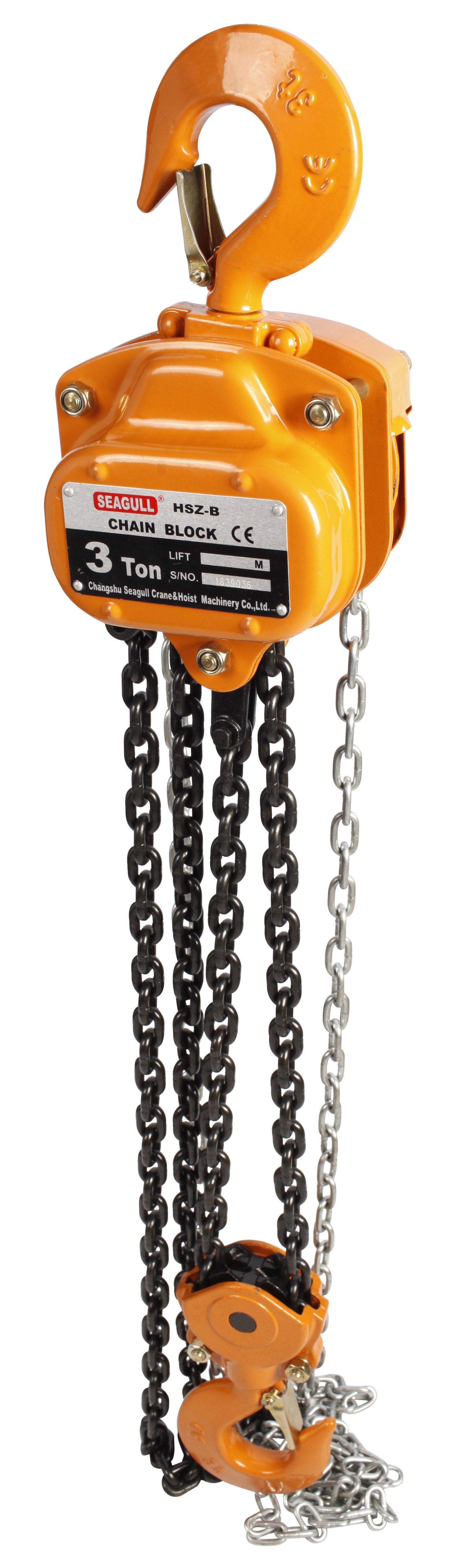

    CE 3m 3 Ton Manual Chain Hoist With Automatic Double - Pawl Braking System

    Ask Lasest Price
    Brand Name : SEAGULL
    Model Number : HSZ-B
    Certification : CE GS
    Price : Negotiable
    Supply Ability : 10000
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    CE 3m 3 Ton Manual Chain Hoist With Automatic Double - Pawl Braking System

    1 T 3M Manual Chain Block , Chain Hoist , Hoist Chain with Export Standard


    features:


    1) Capacity from 0.5T to 30T

    2) Have certificate of CE

    3) Got certificate of ISO9001

    4) Automatic double-pawl braking system.

    5) Asbests-free brake discs.

    6) Drop forged hooks and hook holders to ensure superior quallity and safety

    7) More thickness of sheet cover,gear cover and side plates for good quality.

    8) The static test is 4 times of capacity,and running test is 1.5 times of capacity one by one



    HSZ-B CHAIN BLOCK
    ModelHSZ-0.5BHSZ-1BHSZ-1.5BHSZ-2BHSZ-3BHSZ-5BHSZ-10BHSZ-15BHSZ-20BHSZ-30B
    Rated load(T)0.511.523510152030
    Standard lift(m)2.52.52.52.5353333
    Test load(T)0.751.52.2534.57.512.518.752537.5

    Efforts required

    at capacity(N)

    262324395330402430438447438442

    Diameter at

    load chain(mm)

    567.167.11010101010
    NO. of load chains11122246810
    Dimensions(mm) A127156180156180230410410645710
    B115131142131124171171204215398
    C288334415459536660738102810021050
    Net weight(kg)710.515.51623396995155237
    Extra weight per meter of lift(kg)1.51.822.73.25.39.814.219.623.9
