Brand Name : | SEAGULL or OEM pointed brand |
Model Number : | mini-500 |
Certification : | ISO |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 1000 |
Delivery Time : | Within 30-45 days after confirm the PI |
Production Description
(1)Capacity : 250kg ,500kg
(2)T80 grade high tensile lifting chain make more effective
(3)Chain guides provide smooth chain operation.
(4)Bearings inside load chain sprocket increase mechanical efficiency
(5)Drop forged hooks and hook holders, heat treated to ensure the safety and durability.
(6)lightweight steel construction with durable powder coat finish.

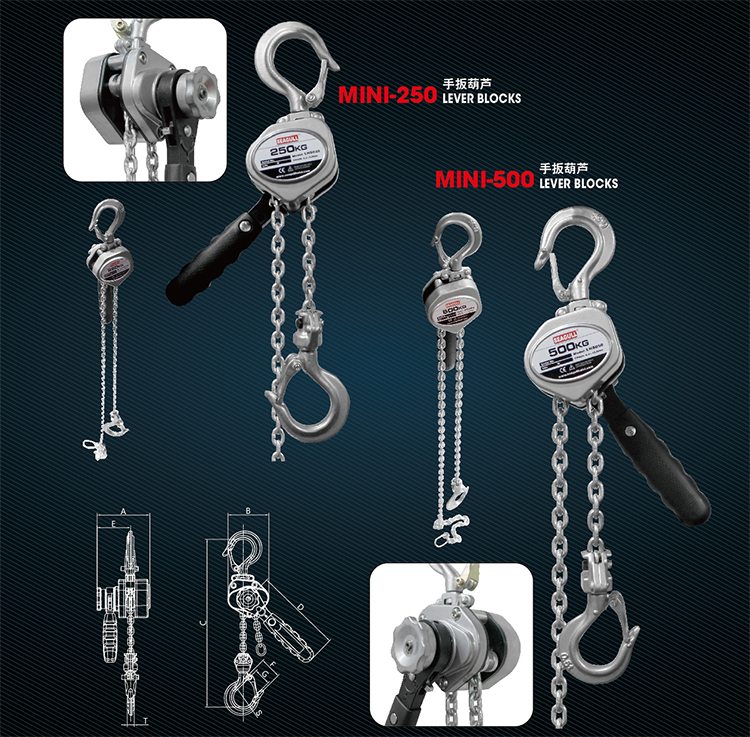

Model | MINI-250 | MINI-500 |
Rated Load(kg) | 250 | 500 |
No.of Load chians | 1 | 1 |
Diameter of Load Chain | 3.2*9 | 4.3*12 |
Efforts Required at Capacity(N) | 200 | 240 |
Test Load(kg) | 375 | 750 |
Standard lift(m) | 1 | 1.5 |
Extra Weight Per Meter of Extra lift(kg) | 0.22 | 0.37 |
Dimensions(mm) A | 90 | 98 |
B | 68 | 81 |
C | 200 | 250 |
D | 150 | 172 |
E | 56 | 62 |
F | 35.5 | 42 |
G | 20 | 21 |
S | 32 | 34.5 |
T | 11 | 12.5 |
Net Weight()kg | 1.55 | 2.55 |
Application
Lever hoist widely used in shipbuilding, electricity, transportation, construction, mining, telecommunications and other industries equipment installation, lifting equipment, mechanical parts, such as pulling.
![]() |
