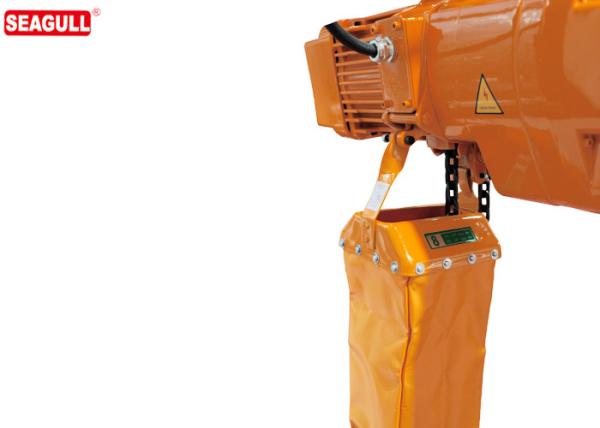

3 Phases 50hz variable speed electric chain hoist capacity 1.5 Ton lifting height 3 meter

Product Description
Capacity:0.5t,1t,2t,3t,5t,7,5t,10t,15t,25t,30t,35t.
Motor: Work class F insulation.
Duty rating:45%.Aluminum alloy motor with light weight and good heat dissipation to allow up 30minof continuous duty work at least.
Gear: All the gearing process by CNC Digital lathe with heat treating
Shelly:Made of light aluminum alloy shell.Light&hard. The cooling fin is especially designed to ensure quick heat dissipationwith the rate up to 45% and continuous service. The integral enclosed structure is applicable to places like chemical plate andelectroplate factroy
Side magnetic braking device:The magnetic orce generator is the lastest design which is featured for generating magnetic force. It allowsinstant brake cut off electric power asap.Keep the braking safety while loading is guaranteed
Limit switch :The limit switch automatically stop the hoist overlifting or overlowering
Chain: FEC JAPAN made G-80 super alloy steel chain.Heat treated to used in harsh environments .
Hook: Hot fored with perfect strength and tough with saftey latch on the top&bottom hook. Bottom hook swivels through 360°
Support frame:The loading support frame consists of two steel plates which is extremely sturdy
Transformer:24/36V transformer device forbid unexpected accidents such as electric leakage.
Electromagnetic contactor:It can use safely under high frequency
Phase protect device: It wonn't work when error wiring connecting by the end user to keep safe
Control button: IP 54 protection on electric hoist for dust and water proof protection.36V control

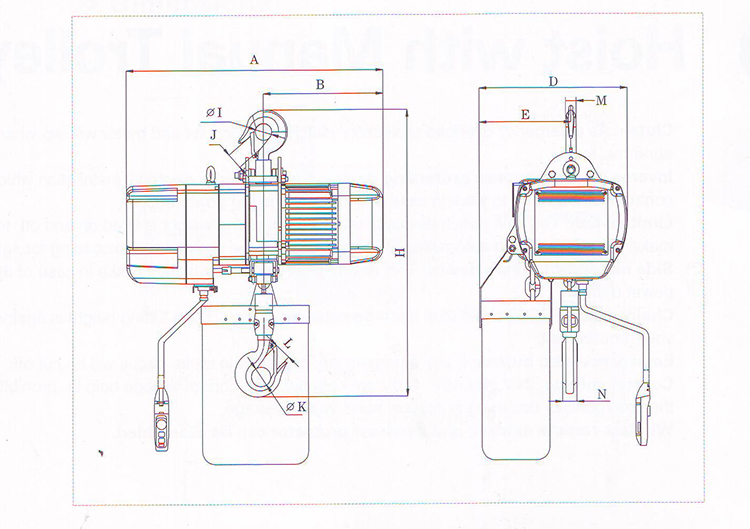

Techinal parameters

Remark:1.lifting height against customer's requirement.2.60hz/s speed=60hz/s speed *1.2

Test



Packing


Certificate

Changshu Seagull Crane&Hoist Machinery Co.,Ltd was established in 1986. And reformed in 2000 by Japan and china-based partners. Seagull has more than 20 years of experiences in the field of electric hoist and chain block.

Seagull is a manufacturer specialized in designning,developing and producing all kinds of wire rope hoist,electric chain hoist, snatch block,manual winch and riggings hardware.

Our actual land area is15,000 sq.m. We have advanced CNC machines,roll thread machines,cylindrical surface grinders,spark erosion machines,milling machines,auto destruction test machine ,automatic endurance test machines ect.

Seagull adopts a quality management system in accordance to the strict ISO9001:2000 . In addition,our electric chain hoist, manual hoist,snatch block are also accredited by German TUV CE,GS. Seagull objective is to produce high quality lifting products at the most competitive price to all of the customers. Seagull is continuing to improve the manufacturing method,and always keep a constant looking for new advanced technique and design,develop new lifting products.

"Quality,development,credibility,sincerity,cooperation and efficiency are the principles of seagull"We sincerely expect the good business relationship with customers from all of the world.Your inquiry ,your order,your quality problem will be high attention and immediate response by seagull.
