    Seagull HSZ-A Hand Chain Hoist Winch Pulley Lift 0.5 Ton Capacity For Lifting

    Ask Lasest Price
    Brand Name : SEAGULL
    Model Number : HSZ-A
    Certification : CE,GS
    Price : Usd27-Usd1000
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 12000Pcs/Month
    Delivery Time : 30 Days After Confirm The Pi
    • Product Details
    • Company Profile

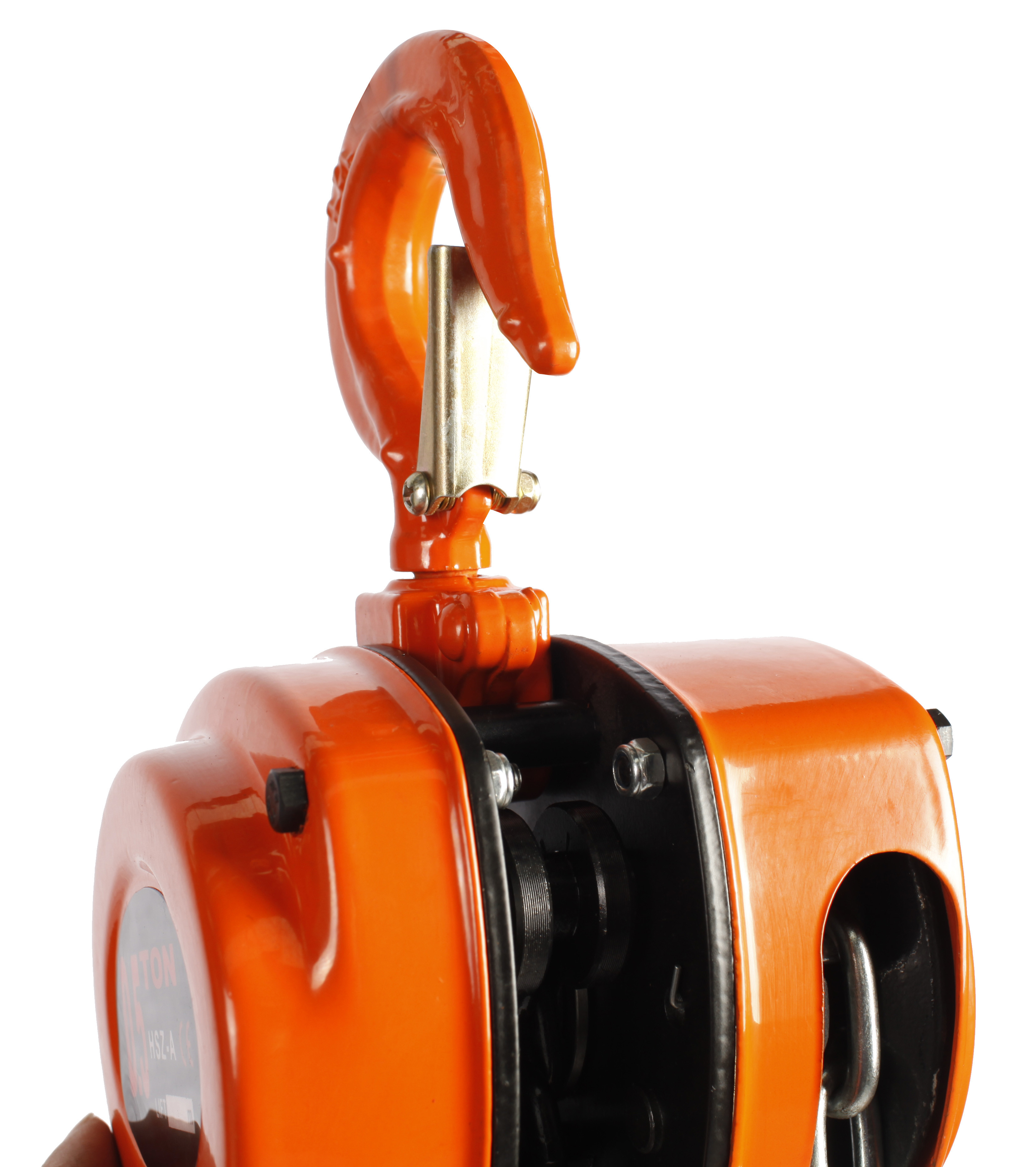

    Seagull HSZ-A Hand Chain Hoist Winch Pulley Lift 0.5 Ton Capacity For Lifting

    seagull HSZ-A manual chain block Chain Hoist Winch Pulley Lift 0.5 ton capacity

    Production Description


    * Capacity form 0.5t,15,1.5t,2t,3t,5t,10t,20t,30t

    *Strong design, all steel construction

    *Open frame design for self-cleaning, quick load sheave inspection and easy hoist maintenance

    * Load chain sprocket with precision machining has been got well heat-treatment

    Seagull HSZ-A Hand Chain Hoist Winch Pulley Lift 0.5 Ton Capacity For LiftingSeagull HSZ-A Hand Chain Hoist Winch Pulley Lift 0.5 Ton Capacity For Lifting

    Technical Parameters

    Professional 5000KG Manual Chain Hoist Red HSZ Seires For Lifting

    SPECIFICATION:
    - Capacity: 0.25T to 30T.
    - TUV CE&GS Certified
    - Factory pass ISO9001:2000
    - Drop forged hooks and hook holders to ensure superior quality and safety.
    - More thickness of sheet cover,gear cover and side plates for good quality.
    - Automatic double-pawl braking system.
    - The static test is 4 times of capacity,and running test is 1.5 times of capacity one by one.
    - Asbests-free brake discs.
    KEY SPECS
    ModelHSZ-0.5KHSZ-1KHSZ-1.5KHSZ-2KHSZ-2KHSZ-3KHSZ-5KHSZ-10KHSZ-15KHSZ-20KHSZ-30K
    Rated load (T)0.511.5223510152030
    Standard lift (m)2.52.52.52.52.5333333
    Test load (T)0.751.52.25334.57.512.518.752537.5
    Efforts required at capacity (N)262324395380330402430438447438442
    Diameter of load chain (mm)567.1867.11010101010
    No. of load chains111122246810
    Dimensions (mm)A127156180181156180230410410645710
     B115131142148131142171171204215398
     C288334415435459536660738102810021050
    Net weight (kg)710.515.518.51623396995155237
    Extra weight per meter of extra lift (kg)1.51.822.42.73.25.39.814.219.623.9
