Brand Name : | SEAGULL or OEM pointed brand |
Model Number : | HSZ-K |
Certification : | CE,GS,ISO9001:2008 |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 10000 pieces per year |
Delivery Time : | Within 30 days after confirmation for HSZ-K type Chain Block 30T |

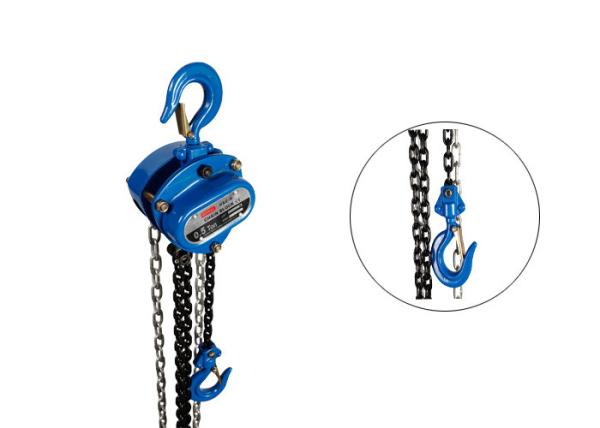

popular in Eurpoe 0.5 Tonne-30 tonne Manual Chain Block stainless steel
why choose us:
1. customer design: single chain or double chain
2. Automatic double-pawl braking system and Asbests-free brake
discs
3. More thickness of sheet cover,gear cover and side plates for
good quality.
4. Drop forged hooks and hook holders to ensure superior quallity and safety.
5. safety test : static test is 4 times of capacity and running
test is 1.5 times of capacity one by one.
HSZ-K CHAIN BLOCKS 0.5Ton-30Ton | |||||||||
Model | HAS-0.5K | HSZ-1K | HSZ-1.5K | HSZ-2K | HSZ-3K | HSZ-5K | HSZ-10K | HSZ-20K | HSZ-30K |
Rated load(T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 |
Standard lift(m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
Test load(T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | 25 | 37.5 |
Efforts required at capacity(N) | 262 | 324 | 395 | 330 | 402 | 430 | 438 | 438 | 442 |
Diameter of load chain(mm) | 5 | 6 | 7.1 | 6 | 7.1 | 10 | 10 | 10 | 10 |
No. of load chains | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | 10 |
Dimensions (mm) A B C D | 120 116 285 28 | 147 136 332 32 | 181 147 410 38 | 158 136 470 40 | 202 148 550 44 | 228 178 640 50 | 373 178 737 64 | 638 195 1022 82 | 703 397 1050 82 |
Net weight (kg) | 7 | 10 | 15 | 17 | 23 | 38 | 68 | 160 | 235 |
Extra weight per meter of extra lift(kg) | 1.5 | 1.8 | 2 | 2.7 | 3.2 | 5.3 | 9.8 | 19.6 | 23.9 |
